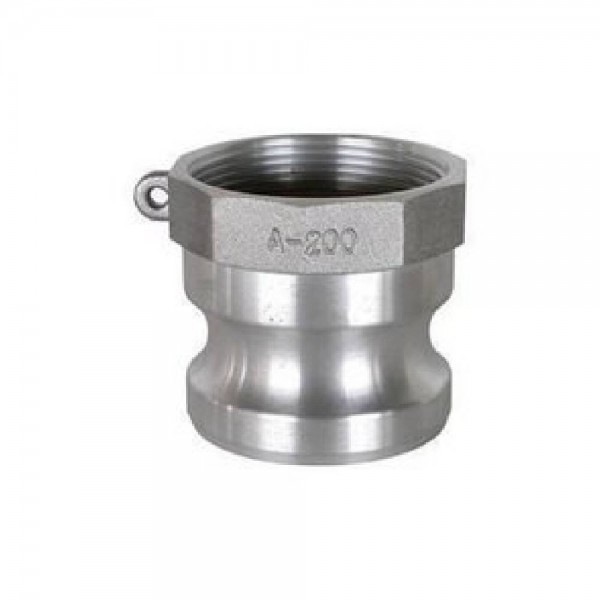

CAMLOCK A type connections

Connectors for petroleum, chemical, water, industrial fluids. Made of aluminum (AL), stainless steel (SS) and polypropylene (PP).
Connectors for petroleum, chemical, water, industrial fluids. Made of aluminum (AL), stainless steel (SS) and polypropylene (PP).

Connectors for petroleum, chemical, water, industrial fluids. Made of aluminum (AL), stainless steel (SS) and polypropylene (PP).

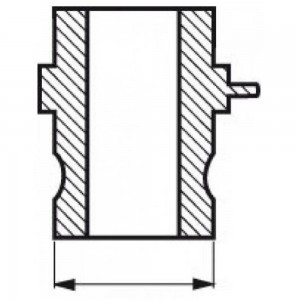

Code Size Internal thread, inches
Diameter, mm
A-012 12 1/2 “ 25
A-019 19 3/4 “ 32
A-025 25 1 “ 37
A-032 32 1 1/4 “ 45
A-038 38 1 1/2 “ 53
A-051 51 2 “ 63
A-063 63 2 1/2 “ 76
A-076 76 3 “ 92
A-102 102 4 “ 120
A-127 127 5 “ 145
A-152 152 6 “ 175
