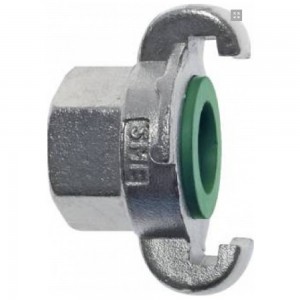

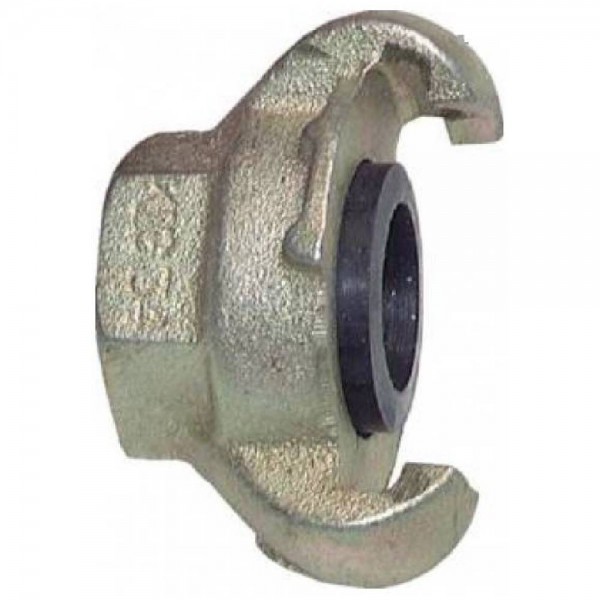

KIG type connection with external thread

The connections are designed for compressed air
The connections are designed for compressed air
The connections are designed for compressed air

The connections are designed for compressed air. Complies with DIN3483 and DIN3489 standards. Made of galvanized steel, stainless steel.

Working pressure 10 bar, ner. steel - 16 bars.

Operating temperature from -40 ° C to + 95 ° C

Code

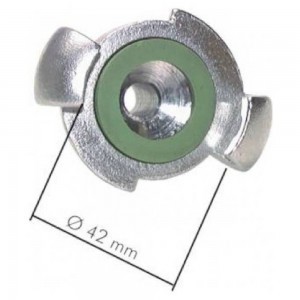

 Size, mm Internal thread, inches Lock size Ø, mm
KIG-G14-S42 6 1/4 “

42

KIG-G38-S42

 10 3/8 “ 42
KIG-G12-S42 13 1/2 “

42

KIG-G34-S42

 19 3/4 “ 42
KIG-G1-S42 25 1 “

42

KIG-G114-S42

 32 1 1/4 “ 42
KIG-G112-S42 38 1 1/2 “

42
