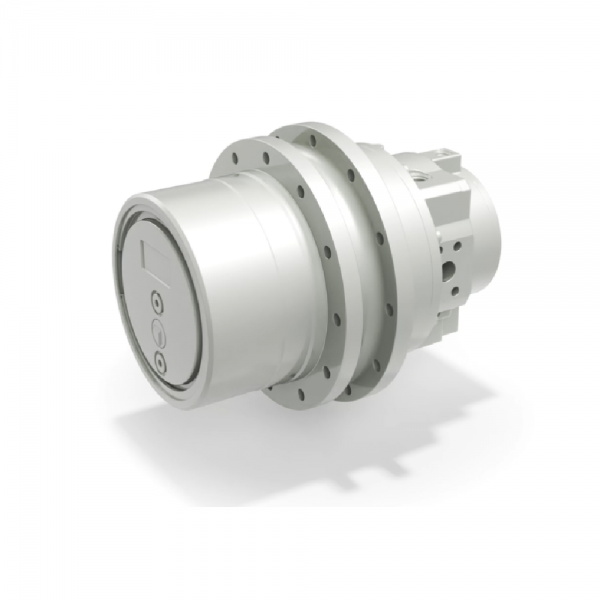

Bonfiglioli 700 XT track drives excellently combine proven mechanical systems with ground-breaking hydraulic components, making them the best choice for closed-loop applications and demanding construction equipment machines, such as compact track loaders (5.5 to 7.5 tons), small dozers (5.5 to 7.5 tons) or pavers (12 to 15 tons).

Technical information:

Torque range from 12,000 Nm to 22,000 Nm

Gear range from 1/22 to 1/53

Input speed - up to 3500 rpm

Motors to be connected:

Integrated swash plate variable hydraulic motor

Available with both hydraulic two position or electric proportional variable displacement control
