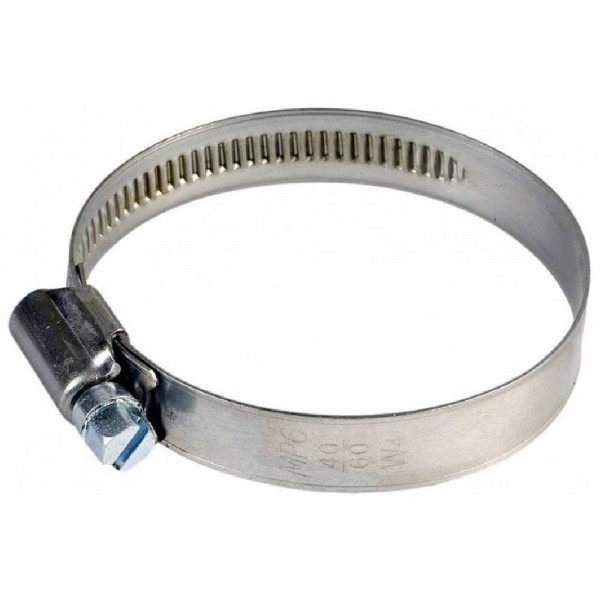

Screw clamps

The clamps are made according to the European DIN 3017 standard and are made of galvanized steel or stainless steel (SS). Classified according to material properties W1, W2, W3, W4 and W5.

W1 - fully galvanized steel;

W2 - strip and housing made of stainless steel (ASI 430; DIN1.4016), bolt made of galvanized steel;

W3 - completely stainless steel (ASI 430; DIN1.4016);

W4 - completely stainless steel (ASI 304; DIN1.4301);

W5 - completely stainless steel (ASI 316; DIN1.4401);

Kods

Clamping limits, mm


 Width, mm
8-16 8-16

9 vai 12

12-22

 12-22 9 vai 12
16-27 16-27

9 vai 12

20-32

 20-32 9 vai 12
25-40 25-40

9 vai 12

32-50

 32-50 9 vai 12
40-60 40-60

9 vai 12

50-70

 50-70 9 vai 12
60-80 60-80

9 vai 12

70-90

 70-90 9 vai 12
80-100 80-100

9 vai 12

90-110

 90-110 9 vai 12
100–120 100–120

9 vai 12

110 –130

 110–130 9 vai 12
120–140 120 –140

9 vai 12

130-150

 130-150 9 vai 12
140-160 140-160

9 vai 12

150–170

 150–170 9 vai 12
160-180 160-180

9 vai 12

170–190

 170–190 9 vai 12
180-200 180-200

9 vai 12

190–210

 190–210 9 vai 12
200–220 200–220

9 vai 12

210–230

 210–230 9 vai 12
220–240 220–240

9 vai 12

230–250

 230–250 12
250–270 250–270

12

270–290

 270–290 12
290-310 290-310

12

310-330

 310-330 12
330-350 330-350

12
