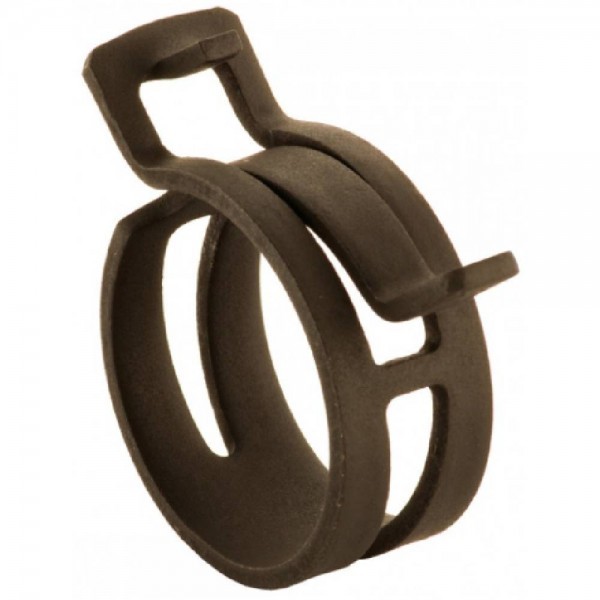

Spring clamps

These spring clamps are made in accordance with DIN 3021.

It is especially recommended when the temperature can range from -40ºC to + 120ºC.

This clamp design means that it can maintain the same radial force despite changes in temperature. The spring clamp is quick and easy to install, it is also reusable.

Code

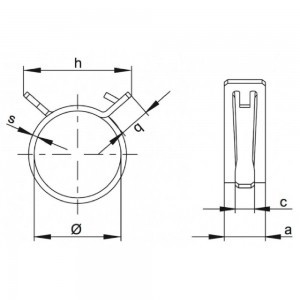

 Ø min, mm Ø max, mm Wight, mm h, mm b, mm c ± 0,7, mm S + 0,08

S – 0,02
17-DIN3021 15,6 18,5 12 40 10 5,8

0,8

19-DIN3021

 17,8 20,2 12 40 10 5,8 1,3
20-DIN3021 18,4 21,6 12 40 10 5,8

1,3

21-DIN3021

 19,5 22,5 12 40 10 5,8 1,3
22-DIN3021 20,5 24,2 12 40 10 5,8

1,3

23-DIN3021

 21,0 24,7 12 40 10 5,8 1,3
24-DIN3021 22,0 26,0 12 40 10 5,8

1,3

25-DIN3021

 23,5 26,8 12 40 10 5,8 1,3
26-DIN3021 24,3 28,0 12 60 10 5,8

1,7

27-DIN3021

 25,2 29,2 12 60 10 5,8 1,7
29-DIN3021 27,0 31,5 12 60 10 5,8

1,7

32-DIN3021

 29,3 34,5 12 60 10 5,8 1,7
35-DIN3021 31,5 38,0 12 60 10 5,8

1,7

36-DIN3021

 32,5 39,0 12 60 10 5,8 1,7
38-DIN3021 34,5 41,5 12 60 10 5,8

1,7

40-DIN3021

 35,5 42,5 12 60 10 5,8 1,7
41-DIN3021 36,5 43,5 12 60 10 5,8

1,7

42-DIN3021

 37,2 44,5 12 60 10 5,8 2,1
44-DIN3021 38,5 46,5 12 60 10 5,8

2,1

46-DIN3021

 40,5 48,5 12 60 10 5,8 2,1
47-DIN3021 41,4 50,0 12 60 10 5,8

2,1

49-DIN3021

 42,5 52,0 12 72 10 5,8 2,1
50-DIN3021 43,5 53,0 12 72 10 5,8

2,1

51-DIN3021

 44,0 54,0 12 72 10 5,8 2,1
53-DIN3021 46,0 55,8 12 72 10 5,8

2,1

55-DIN3021

 46,8 58,0 12 72 10 5,8

2,1
