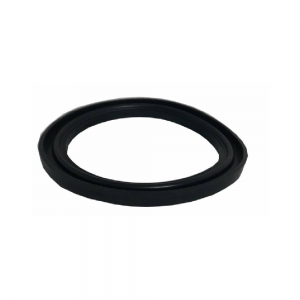

TRI-CLAMP Gasket for Clamp Coupling NBR DIN32676

TRI-CLAMP Gasket for Clamp Coupling NBR. Create an easy connection for quick assembly or disassembly of secure, leak proof connections. With a gasket in place between clamp ferrules, a single pin heavy duty clamp is used to complete the connection. Used in pharmaceutical, food, cosmetic and chemical industries, in biotechnology, for fluids and high viscosity media.


Code Outer diameter
DN Material Colour
GASK-015-DIN-EPDM 34 15 EPDM Black
GASK-020-DIN-EPDM
34 20 EPDM Black
GASK-025-DIN-EPDM
50,5 25 EPDM Black
GASK-025-DIN-NBR
50 25 NBR White
GASK-032-DIN-EPDM
50,5 32 EPDM Black
GASK-040-DIN-EPDM
50,5 40 EPDM Black
GASK-040-DIN-NBR
50 40 NBR White
GASK-050-DIN-EPDM
64 50 EPDM Black
GASK-050-DIN-NBR
65 50 NBR White
GASK-065-DIN-EPDM
91 65 EPDM Black
GASK-065-DIN-NBR
91 65 NBR White
GASK-080-DIN-NBR
106 80 NBR White
GASK-100-DIN-EPDM
119 100 EPDM Black
